Stainless Steel Plate & Frame Filter Press dewatering 200x200mm 0.45 micron

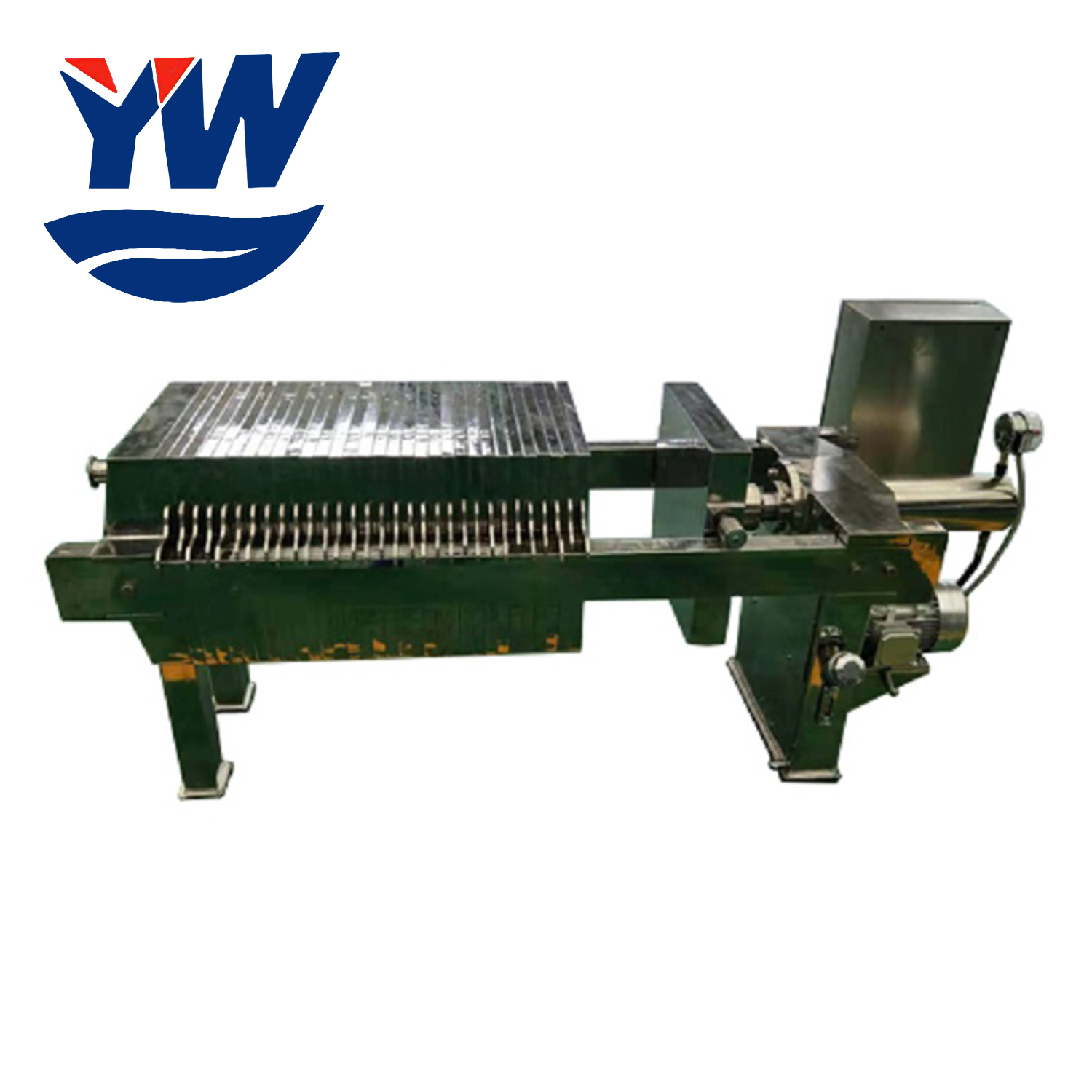

Stainless Steel Plate and Frame Filter Press 200*200mm Series

The stainless steel plate and frame filter press is a product which can adopt different filter media and can realize coarse filtration, precision filtration and ultrafiltration.

With ultrafilter medium, it can attain the goal of clarification and desterilization. The whole machine is made of stainless steel(304 316 or 316L), and the seal gaskets adopt silicon rubber, so the machine features acid and alkali corrosion resistance, non-toxicness and high temperature resistance, good sealing performance and long service life. It has a novel construction, nice appearance, flexible movement, convenient operation and wear well.

Model	Filter press	Plate size	Cake thickness	Filter chamber volume	Plate NO	Filtration pressure	Motor power	Weight	Dimensions LWH(mm)	Foundation Size(mm)
Model	Filter press	Plate size	Cake thickness	Filter chamber volume	Plate NO	Filtration pressure	Motor power	Weight	Dimensions LWH(mm)	L	B	D	H
X_M^AG30/870−U_K^B	30	870*870	≤35	498	23	≥0.8	2.2	3046	388012501300	2920	700	1270	785
X_M^AG40/870−U_K^B	40			623	29			3593	427012501300	3300
X_M^AG50/870−U_K^B	50			789	37			4057	479012501300	3820
X_M^AG60/870−U_K^B	60			955	45			4597	531012501300	4340
X_M^AG70/870−U_K^B	70			1121	53			5136	583012501300	4860
X_M^AG80/870−U_K^B	80			1287	61			5636	635012501300	5380
X_M^AG50/1000−U_K^B	50	1000*1000		776	27		4	4352	427015001400	3350	780	1400	870
X_M^AG60/1000−U_K^B	60			943	33			4480	470015001400	3780
X_M^AG70/1000−U_K^B	70			1109	39			5263	513015001400	4210
X_M^AG80/1000−U_K^B	80			1275	45			5719	556015001400	4640
X_M^AG100/1000−U_K^B	100			1608	57			6555	641015001400	5490
X_M^AG120/1000−U_K^B	120			1941	69			7466	726015001400	6340
X_M^AG80/1250−U_K^B	80	1250*1250	≤40	1560	29		5.5	10900	483018001600	3960	850	1740	995
X_M^AG100/1250−U_K^B	100			1975	37			11750	544018001600	4570
X_M^AG120/1250−U_K^B	120			2391	45			12600	606018001600	5180
X_M^AG150/1250−U_K^B	150			2911	55			13620	682018001600	5950
X_M^AG160/1250−U_K^B	160			3119	59			14470	713018001600	6255
X_M^AG200/1250−U_K^B	200			3847	73			15320	820018001600	7325
X_M^AG240/1250−U_K^B	240			4679	89			16170	942018001600	8550
X_M^AG250/1250−U_K^B	250			4783	91			17020	957018001600	8700
X_M^AG200/1500−U_K^B	200	1500*1500		3809	49		11	26120	714022001820	5870	1170	1990	1070
X_M^AG250/1500−U_K^B	250			4723	61			26930	773022001820	6860
X_M^AG300/1500−U_K^B	300			5637	73			28160	872022001820	7850
X_M^AG350/1500−U_K^B	350			6551	85			29600	1011022001820	9090
X_M^AG400/1500−U_K^B	400			7618	99			31500	1126022001820	10240
X_M^AG450/1500−U_K^B	450			8532	111			33400	1225022001820	11230
X_M^AG500/1500−U_K^B	500			9446	123			33380	1324022001820	12220
X_M^AG600/2000−U_K^B	600	2000*2000		11901	85		15	54164	1303030002500	10610	1660	2000	1050
X_M^AG700/2000−U_K^B	700			13838	99			58300	1439030002500	11920
X_M^AG800/2000−U_K^B	800			14945	107			62460	1577030002500	13240
X_M^AG900/2000−U_K^B	900			17713	127			66620	1715030002500	14560
X_M^AG1000/2000−U_K^B	1000			19651	141			70780	1853030002500	15880
