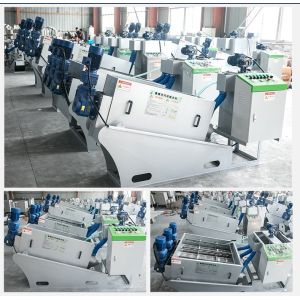

Sewage Treatment Snail Stacker Stainless Steel Snail Stacker Sludge
Dewatering Machine Sludge Dewatering Snail Stacker
Wide application
1. Suitable for sludge in municipal sewage, food, beverage,
chemical industry, leather, welding consumables, papermaking,
printing and dyeing, pharmaceutical and other industries.
2. It is suitable for dewatering of high and low concentration
sludge. When dewatering low concentration (2000mg/L~) sludge, there
is no need to build a concentration tank and a storage tank, which
reduces the construction cost and reduces the release of phosphorus
and the generation of anaerobic odor.
small design
1. The design is compact. The dehydrator includes an electric
control cabinet, a metering tank, a flocculation mixing tank and
the main body of the dehydrator.
2. Small footprint, easy maintenance and replacement; small weight,
easy to carry.
Not easy to block
1. It has the function of self-cleaning. There is no need for
cleaning to prevent filter clogging, reducing flushing water
consumption and reducing the burden of internal circulation.
2. Good at dewatering of oily sludge.
running at low speed
1. The rotation speed of the screw shaft is about 2~3 rpm, and the
power consumption is low.
2. Fewer failures, less noise and vibration, and safe operation.
easy to use
1. Through the electric control cabinet, it is linked with the
brewing machine, the mud feeding pump, the dosing pump, etc. to
achieve 24-hour continuous unmanned operation.
2. The daily maintenance time is short and the maintenance work is
simple.
durable
1. The body is almost entirely made of stainless steel, which can
maximize the service life.
2. The replacement parts are only the screw shaft and the moving
ring, and the service cycle is long.
cost reduction
● The design of the machine is compact, and the concentration and
dehydration are integrated. It is equipped with auxiliary devices
such as electric control cabinet and sludge flocculation mixing
tank. It has strong compatibility with supporting equipment and is
easy to design.
● Small design, easy to adapt to local conditions, can reduce the
space and construction cost of the dehydrator itself.
● With the sludge thickening function, no thickening and storage
unit is required, which reduces the overall footprint and
construction cost of the sewage treatment facility.
● The main body of the dehydrator has a self-cleaning function, so
it is not necessary to wash with a large amount of water to prevent
sludge clogging.
● Using low-speed screw extrusion technology, low power
consumption.
● The electric control cabinet is equipped with an automatic
control device, which realizes 24-hour automatic continuous
unmanned operation from sludge transportation, injection of liquid
medicine, concentration and dehydration, and discharge of mud cake,
reducing labor costs
| Model | abs dry mud
kg-DS/h | 0.20% | 1% | 2% | 3% | 5% |
| YWDL-101 | 6~12 | ~1.2m3/h | ~ 1m3/h | ~ 0.5m3/h | ~ 0.4m3/h | ~ 0.3m3/h |
| YWDL-102 | 12~25 | ~2.4m3/h | ~2m3/h | ~1m3/h | ~0.8m3/h | ~ 0.5m3/h |
| YWDL-201 | 9-20 | ~2m3/h | ~1.5m3/h | ~0.8m3/h | ~ 0.6m3/h | ~ 0.45m3/h |
| YWDL-202 | 18~40 | ~4m3/h | ~ 5m3/h | ~ 1.6m3/h | ~ 1.2m3/h | ~ 0.9m3/h |
| YWDL-251 | 20~50 | ~5m3/h | ~ 3.5m3/h | ~ 3m3/h | ~ 2m3/h | ~ 1m3/h |
| YWDL-252 | 40~ 100 | ~10m3/h | ~ 8m3/h | ~ 4m3/h | ~ 3m3/h | ~ 2m3/h |
| YWDL.301 | 30~60 | ~6.5m3/h | ~ 5m3/h | ~ 2.5m3/h | ~ 2m3/h | ~ 1.5m3/h |
| YWDL-302 | 60~120 | ~13m3/h | ~ 10m3/h | ~5m3/h | ~ 4m3/h | ~ 3m3/h |
| YWDL-351 | 70-150 | ~13m3/h | ~ 10m3/h | ~5m3/h | ~ 4m3/h | ~ 3m3/h |
| YWDL-352 | 90-180 | ~17m3/h | ~ 15m3/h | ~7.5m3/h | ~ 6m3/h | ~ 4.5m3/h |
| YWDL-401 | 40-200 | ~10m3/h | ~ 8m3/h | ~ 6m3/h | ~ 5m3/h | ~4m3/h |
| YWDL-402 | 80~400 | ~20m3/h | ~ 16m3/h | ~ 12m3/h | ~ 10m3/h | ~ 8m3/h |
| YWDL-403 | 120-600 | ~30m3/h | ~ 24m3/h | ~ 18m3/h | ~ 15m3/h | ~ 12m3/h |
| YWDL-404 | 100-800 | ~40m3/h | ~ 32m3/h | ~ 24m3/h | ~ 20m3/h | ~ 16m3/h |
